Datasheet
FITCOTUBE® FT010
Halogen-free, flame-resistant heat-shrink tubing with flat surface. Use as cable labelling and wire sheath in military technology, vehicles for mass transport and public buildings. High flexibility at low temperatures.
Temperature range: -40°C to +105°C
Shrink temperature: +120°C
Shrinkage ratio: 2 : 1
Standard color: Black
Approvals: ASTM, BS 6853, BSS 7239 Boeing Specification Support Standard, Japanese Standard for railway vehicle material, LUL: London Underground Limited Eng. Stand. E 1042. A6, SAE- AMS-DTL-23053, EN45545-2, IEC 60684-3-216
Datasheet
FITCOTUBE® FT100
High-quality, flexible, self-extinguishing heat-shrink tubing universally applicable. Use as insulation, mechanical relief of wires and cables, protection against environmental influences and labelling via different colors.
Temperature range: -55°C to +135°C, short time +250°C
Shrink temperature: +90°C
Shrinkage ratio: 2 : 1
Standard color: Black, White, Red, Yellow, Blue. Other colours on request.
Approvals: UL 224 125°C 600V VW-1 (File No. E191514); Mil Spec. M23053/5 class 1 & 3
Datasheet
FITCOTUBE® FT100 clear
High-quality, flexible, flame resistant heat-shrink tubing universally applicable. Use as insulation, mechanical relief of wires and cables, protection against environmental influences e. g. for cable harnesses.
Temperature range: -55°C to +135°C, short time +250°C
Shrink temperature: from +75°C to +110°C
Shrinkage ratio: 2 : 1
Standard color: Transparent
Approvals/Specifications: Mil Spec. M23053/5 class 2
Datasheet
FITCOTUBE® FT101 2:1
Flexible, self-extinguishing, bicolored extruded heat-shrink tubing. Use as insulation and marking of cables, wires and ground conductors.
Temperature range: -55°C to +135°C, temporarily up to +250°C
Shrink temperature: +90°C
Shrinkage ratio: 2 : 1 (also available as 3 : 1 )
Standard color: Yellow-green
Approvals/Specifications: UL 224 125°C 600V VW-1 (File No. E191514)
Datasheet
FITCOTUBE® FT102W
High-quality, universally applicable, highly flexible, flame-retardant, extremely thin-walled polyolefin shrink tubing for sheathing, insulation and marking of wires and cables in predominantly commercial industrial applications.
Temperature range: -55°C to +125°C
Shrink temperature: >+70°C, completely at >+100°C
Shrinkage ratio: 2 : 1
Standard color: black, red, blue, yellow, green, weiß, purple, brown,
other colors on request
Datasheet
FITCOTUBE® FT175
Semi-rigid, abrasion resistant, flame-resistant high temperature-PVDF-heat shrink tubing with reliable insulation and excellent mechanical protection of wires and components in high temperature environment. Protection of soldering and crimp connections. High chemical stability.
Temperature range: -55°C to +175°C, short time +300°C
Shrink temperature: +170°C
Shrinkage ratio: 2 : 1
Standard color: Transparent. Other colours on request.
Approvals/Specifications: UL 224 150°C 600V VW-1 (File No. E191539); Mil Spec. M23053/8
Datasheet
FITCOTUBE® FT190
Semi-rigid, abrasion resistant, flame-resistant high temperature-PVDF-heat shrink tubing with reliable insulation and excellent mechanical protection of wires and components in high temperature environment. Protection of soldering and crimp connections. High chemical stability.
Temperature range: -55°C to +190°C, short time +300°C
Shrink temperature: +175°C
Shrinkage ratio: 2 : 1
Standard color: Clear
Approvals/Specifications: UL 224 150°C 600V VW-1 (File No. E191539), CSA Class 9032-01 (File No. 233954)
Datasheet
FITCOTUBE® FT200
Highly flexible, abrasion resistant elastomer-heat shrink tube with excellent fuel resistance. Protection of wires and cables primarily use in military vehicles as well as in commercial aircraft. Sensor cable use in demanding automotive applications.
High flexibility at low temperatures.
Temperature range: -75°C to +150°C
Full shrink temperature: +180°C
Shrinkage ratio: 2 : 1
Standard color: Black, other colors on request
Datasheet
FITCOTUBE® FT200U
FITCOTUBE® FT200U is a soft radiation cross-linked polyolefin elastomer heat shrink tubing which is particularly suitable for the connection, insulation and protection of various wires and cables (including military equipment).
FITCOTUBE® FT200U offers excellent resistance to diesel, lubricating oil and hydraulic oil and is flame retardant.
Temperature range: -75°C to +150°C
Min. full shrink temperature: +150°C
Shrinkage ratio: 2 : 1
Standard color: Black, other colors on request
Datasheet
FITCOTUBE® FT200-TW
FITCOTUBE® FT200-TW is a heat shrinkable tubing made of cross-linked elastomer with extra thin wall thickness. It is flexible, flame retardant and offers good resistance against abrasion, liquids and diesel. It is suitable for long term and high temperature applications up to 150°C.
FITCOTUBE® FT200-TW provides excellent mechanical and electrical protection for cables and bundles and is suitable for military, marine and aerospace applications.
Temperature range: -75°C to +150°C
Shrink temperature: +170°C
Shrinkage ratio: 2 : 1
Standard color: Black, other colors on request
Datasheet
FITCOTUBE® FT230
Very flexible, solvent-resistant fluoropolymer shrink tubing. For applications that require high temperature resistance or chemical resistance combined with low shrink temperature.
Temperature range: -55°C to +230°C (black sleeves only)
Shrink temperature: +130°C
Shrinkage ratio: 2 : 1
Standard color: Black
Approvals/Specifications:Mil Spec. M23053/13
Datasheet
FITCOTUBE® FT250
Highly flexible, temperature resistant, halogen-free, cross linked silicone heat-shrink tubing. Medical and industrial applications with very high requirements for temperature and chemical resistance and extreme flexibility.
Temperature range: -50°C to +200°C
Shrink temperature: +140°C
Shrinkage ratio: 2 : 1
Standard color: grey
Datasheet
FITCOTUBE® FT275
Flexible, very abrasion resistant, non-flammable heat shrinkable tubing. It is used wherever the properties of standard Kynar FT175 tubing are desired, but flexibility and better transparency, coupled with a lower shrink temperature, are required. Very good insulation, excellent mechanical protection of wires and components even at high ambient temperatures and reliable protection of soldered and crimped connections, combined with very good chemical resistance.
Temperature range: -55°C to +175°C
Shrink temperature: +120°C to +150°C
Shrinkage ratio: 2 : 1
Standard color: Transparent
Approvals/Specifications:UL 224 VW-1 (File No. E328096); Mil Spec. M23053/18 class 1
Datasheet
FITCOTUBE® FT300
Flexible, flame-retardant and thin-walled polyolefin hose with high shrinking capacity; universal application. Protection, insulation and mechanical relief for wires, cables and components with large diameter differences. Ideal multi-purpose heat shrink tubing, as a wide range of diameters can be covered with just a few sizes.
Temperature range: -55°C to +135°C, short time +250°C
Shrink temperature: +90°C
Shrinkage ratio: 3 : 1
Standard color: black, white, red, blue, yellow. Other colors on request.
Approvals/Specifications: UL File E191514, Mil Spec. M23053/5
Datasheet
FITCOTUBE® FT300E
Flexible, self-extinguishing, cross-linked polyolefin heat shrink tubing with high shrink ratio (3:1). Insulation and protection of wires, cables, harnesses and connectors with a large difference in diameter. Wide variety of applications. High shrink ratio reduces number of sizes (stock reduction).
Temperature range: -55°C to +135°C
Shrink temperature: +90° C
Shrinkage ratio: 3 : 1
Standard color: Black, white, red, blue, yellow, grey, green-yellow, clear, other colors on request
Approvals/Specifications: UL File E191514 (except clear)
Datasheet
FITCOTUBE® FT300P/E
Flexible, flame-retardant, flattened, printable, thin-walled heat shrink tubing with high shrink ratio; wide variety of applications. Insulation, marking and protection, mechanical relief of wires, cables, harnesses and connectors with a large difference in diameter.
Temperature range: -55°C to +135°C
Shrink temperature: +90°C
Shrinkage ratio: 3 : 1
Standard color: Yellow, white. Other colors on request.
Approvals/Standards: UL-File E191514, railway normative EN 4545-2 class HL1/HL2
Datasheet
FITCOTUBE® FT300 tr
Flexible, self-extinguishing, cross-linked polyolefin heat shrink tubing with high shrink ratio. Insulation and protection of wires, cables, harnesses and connectors with a large difference in diameter. Wide variety of applications. High shrink ratio reduces number of sizes (stock reduction).
Temperature range: -55°C to +135°C, short time +250°C
Shrink temperature: +110°C
Shrinkage ratio: 3 : 1
Standard color: Clear
Datasheet
FITCOTUBE® FT300U
FITCOTUBE®300U is a high quality and flexible general-purpose polyolefin heat shrink tube. Suitable for a wide range of industrial and automotive applications. FITCOTUBE®300U is highly flexible, flame retardant (colors only) and environmentally friendly. Particularly suited to electrical cable insulation, strain relief, identification and cable bundling of wires, wire harnesses and electronic components.
Temperature range: -55°C to +135°C, short time +250°C
Min. Shrink temperature: +90°C
Min. full shrink temperature: +135°C
Shrinkage ratio: 3 : 1
Standard color: Black, white, red, blue, yellow, green. Other colors on request.
Datasheet
FITCOTUBE® FT330
Flexible, flame-retardant, universally applicable hose with high shrinking capacity. Protection, insulation and mechanical relief for wires, cables and components with large diameter differences. Ideal multi-purpose shrink tubing, as a wide range of diameters can be covered with just a few sizes. Reduced storage costs.
Temperature range: -55°C to +125°C, short time +225°C
Shrink temperature: +90°C
Shrinkage ratio: 3 : 1
Standard color: Black
Datasheet
FITCOTUBE® FT400
Flexible, flame resistant Polyolefin-tube with high shrink ratio. Because of the high shrink rate of 4: 1 its particularly suitable for repair of cable assemblies without disassembling any connectors. Protection, insulation and mechanical strain relief of
wires, cables and devices with large differences in diameter.
Temperature range: -55°C to +135°C, short time +250°C
Shrink temperature: +90°C
Shrinkage ratio: 4 : 1
Standard color: Black. Other colors on request.
Approvals/Specifications: Mil Spec. M23053/5 class 1
Datasheet
FITCOTUBE® FT500
Flexible, flame-retardant heat-shrink tubing universally applicable. Use as encasement, insulation and labelling of wires and cables in predominantly commercial industrial use.
Temperature range: -55°C to +125°C, short time +225°C
Shrink temperature: +90°C
Shrinkage ratio: 2 : 1
Standard color: black, blue, red, yellow, green, white. Other colors on request.
Datasheet
FITCOTUBE® FT500 clear
Flexible, flame-retardant heat-shrink tubing universally applicable. Use as encasement, insulation and labelling of wires and cables in predominantly commercial industrial use.
Temperature range: -55°C to +105°C, short time +200°C
Shrink temperature: +115°C
Shrinkage ratio: 2 : 1
Standard color: Clear
Datasheet
FITCOTUBE® FT500-ALP
FT500-ALP is zero halogen, flexible polyolefin. This specially formulated heat shrink has been designed to provide enhanced abrasion protection and noise reduction as well as improved anti-vibration protection. Designed to bond strongly to aluminum this heat shrink is the ideal choice for automotive applications such as air conditioning lines. It also avoids wrinkles when bent.
This product will meet the requirements of TL 52668 type C.
Temperature range: -55°C to +135°C, short time +200°C
Shrink temperature: +125°C
Shrinkage ratio: 2 : 1 up to 3 : 1
Standard color: Black. Other colors on request.
Datasheet
FITCOTUBE® FT500E
Flexible heat-shrink tubing universally applicable. Use as encasement, mechanical relief of wires and cables, protection against environmental influences and marking via different colors.
Temperature range: -55°C to +135°C
Shrink temperature: +90°C
Shrinkage ratio: 2 : 1
Standard color: Black, Blue, Red, Yellow, Green, White, Brown, Green-Yellow, Gray, Clear, other colors on request.
Approvals/Standards: UL File E191514 (all colors except clear)
Datasheet
FITCOTUBE® FT500P/E
Flat and halogen-free shrink tubing with ideal thermal transfer printing properties. Designed for general use in metro, rail, marine and offshore.
Temperature range: -55°C to +105°C
Shrink temperature: ? +90° C
Shrinkage ratio: 2 : 1
Standard color: White, yellow, black
. Blue, red, green and pale yellow on request
Approvals/Standards:
Railway normative EN 45545-2 Fire protection of railway vehicles
LUL S1085 Att. B.5 Fire Safety Performance of Materials
NF F16-101 Railway Rolling Stock Fire Behavior
Datasheet
FITCOTUBE® FT500SW
FT500SW is a cross-linked, flexible and flame-retardant polyolefin heat shrink tubing suitable for a wide range of applications.
Particularly suited for electrical cable insulation and anticorrosion protection.
Temperature range: -55°C to +125°C
Shrink temperature: +125°C
Shrinkage ratio: 2 : 1
Standard color: black, blue, red, yellow, green, white, yellow/green. Other colors on request.
Datasheet
FITCOTUBE® FT500U
FITCOTUBE®500U is a high quality and flexible general-purpose polyolefin heat shrink tube. Suitable for a wide range of industrial and automotive applications. FITCOTUBE®500U is highly flexible, flame retardant (colors only) and environmentally friendly. Particularly suited to electrical cable insulation, strain relief, identification and cable bundling of wires, wire harnesses and electronic components.
Temperature range: -55°C to +135°C, short time +250°C
Min. shrink temperature: +90°C
Min. full shrink temperature: +135°C
Shrinkage ratio: 2 : 1
Standard color: Black, Blue, Red, Yellow, Green, White. Other colors on request.
Datasheet
FITCOTUBE® FT555
Halogen free, high performance, flexible, cross-linked polyolefin heat shrink tubing. Reliable insulation, mechanical protection primarily used in the automotive industry and commercial industrial applications. Prevents outgassing (“foggingeffect”) in lightning applications.
Temperature range: -70°C to +135°C, short time +225°C
Shrink temperature: +90°C
Shrinkage ratio: 2 : 1
Standard color: Black. Other colors on request.
Test method: According to VW 50180 and VW 50181 gravimetric fogging behavior
Datasheet
FITCOTUBE® FT555-AG
FITCOTUBE® FT555-AG is a halogen-free cross-linked polyolefin tubing, with zig-zag inner air groove to guide the air flow and prevent bulging or wrinkling caused by trapped air after shrinkage on curved rubber hoses. Its excellent abrasion resistance offers high protection of the automobile pipelines and extends their service life.
Temperature range: -40°C to +125°C
Shrink temperature: +125°C
Shrinkage ratio: 3 : 1 & 2 : 1
Standard color: Black. Other colors on request.
Approvals/Specifications: TL52668 C
Datasheet
FITCOTUBE® FT700
FITCOTUBE® FT700 is a halogen-free cross-linked, non-meltable Polyolefin heat-shrink tube. Protection of electrical and mechanical devices in commercial applications, where smooth surfaces are required.
Temperature range: -55°C to +105°C, short time +200°C
Shrink temperature: +115°C (shrinking starts at 75°C)
Shrinkage ratio: 2 : 1
Standard color: Black. Other colors on request.
Datasheet
FITCOTUBE® FT800 4:1
Dual-wall polyolefin heat shrink tubing with high shrink ratio and hot melt adhesive coating. Insulation, protection and sealing of connectors, solder and crimp splices and electrical components in areas where liquids are present. Corrosion protection of metal components (tubing, pipes etc.).
Temperature range: -55°C to +125°C, short time +250°C
Shrink temperature: +110°C
Shrinkage ratio: 3 : 1 and 4 : 1
Standard color: black
Approvals/Specifications:Mil Spec. M23053/4 class 3, UL 224 125°C 600V ATF (File No. E191539)
Datasheet
FITCOTUBE® FT800U
FITCOTUBE® FT800U is a dual-wall heat-shrink tubing made of polyolefin with an outer layer of radiation cross-linked flame retardant material and an inner layer of hot melt adhesive.
FITCOTUBE® FT800U is flame retardant (except transparent) according to UL224 VW-1. It is especially suitable for applications that require insulation, corrosion resistance and mechanical stress relief.
Temperature range: -40°C to +125°C
Min. full shrink temperature: +125°C
Shrinkage ratio: 3 : 1 and 4 : 1
Standard color: black, Other colors on request.
Datasheet
FITCOTUBE® FT881U
FITCOTUBE® FT881U is a dual wall heat shrinkable tube made of cross-linked polyolefin with hot meld adhesive liner. It protects automotive brake and fuel piping from mechanical damage as well as potential corrosion caused by moisture.
FITCOTUBE® FT881U is halogen-free and environmentally friendly. It is RoHS and ELV compliant.
Temperature range: -40°C to +80°C
Shrink temperature: +110°C
Shrinkage ratio: 1.5 : 1 to 4 : 1
Standard color: Black, other colors on request.
Datasheet
FITCOTUBE® FT888
Dual-wall polyolefin heat shrink tubing with high shrink ratio and hot melt adhesive coating. Insulation, protection and sealing of connectors, solder and crimp splices and electrical components in areas where liquids are present. Corrosion protection of metal components (tubing, pipes etc.).
Temperature range: -55°C to +110°C, short time +225°C
Shrink temperature: +110°C
Shrinkage ratio: 3 : 1 and 4 : 1
Standard color: black
Datasheet
FITCOTUBE® FT888 clear
Dual-wall polyolefin heat shrink tubing with high shrink ratio and hot melt adhesive coating. Insulation, protection and sealing of connectors, solder and crimp splices and electrical components in areas where liquids are present. Corrosion protection of metal components (tubing, pipes etc.).
Temperature range: -55°C to +105°C
Shrink temperature: +110°C
Shrinkage ratio: 3 : 1 and 4 : 1
Standard color: clear
Datasheet
FITCOTUBE® FT900
Semi-rigid, radiation-crosslinked polyolefin shrink tubing with heat-melting inner layer. Is used for sealing and encapsulation as well as mechanical protection against permanent wire and cable connections.
Temperature range: -55°C to +110°C, short time +250°C
Shrink temperature: +150°C
Shrinkage ratio: from 3 : 1 to 5 : 1
Standard color: Black
Approvals/Specifications: Mil Spec. M23053/4
Datasheet
FITCOTUBE® FT-M-HS
Individual and cost-sensitive insulation for thermal protectors at low shrink. FT-M-HS provides excellent dielectric strength and cut through resistance for insulation in thermal protectors and hermetic systems.
Operating temperature: +130°C
Shrinkage ratio: 20% – 25%
Standard color: Nature, other colors on request
Special designs: Non-shrinking (NS); end caps; low shrink rate
Datasheet
FITCOTUBE® FT-M/N-HS
Heat-Shrink Tube with fast shrinking Polyester layer to coil a high-performance Nomex® insulator around the application in varnish impregnated electric motors.
FITCOTUBE® FT-M/N-HS prevents line failures in electric motors by securing and insulating electrical connections. Rapid shrink-on fitting provides comprehensive mechanical and electrical protection. It maintains its high dielectric strength and
cut-through resistance even in the most demanding class F applications.
Operating temperature: +155°C, short time +160°C
Shrinkage ratio: 30%
Standard color: Nature/white, other colors on request
Special designs: Non-shrinking (NS); ed caps; low shrink rate
Datasheet
FITCOTUBE® FT-SCM
Electrical insulation, pressure-tight sheathing, corrosion and moisture protection for all areas of energy supply, telecommunications technology and pipeline construction.
Operating temperature: -55°C to +120°C
Shrink temperature: +170°C
Shrinkage ratio: 3 : 1
Standard color: Black. Other colors on request.
Datasheet
FITCOTUBE® FT-SNH
FITCOTUBE® FT-SNH is a thick-walled, halogen-free tubing with a shrink ratio of 3:1, made from cross-linked polyolefin. It is resistant to chemical influences, non-corrosive, infusible and offers very good electrical properties and high tensile strength.
FITCOTUBE® FT-SNH is particularly suitable for applications that require good insulation and protection against moisture and pressure, e.g. for heat-shrinkable connections and terminations.
Operating temperature: -40°C to +120°C
Shrink temperature: +125°C
Shrinkage ratio: 3 : 1
Standard colour: Black
Datasheet
FITCOTUBE® FT-SNH-U
FITCOTUBE®FT-SNH-U is a heavy wall, flexible tube made of radiation cross-linked polyolefin (semi-rigid). It is halogen-free and offers excellent insulation, mechanical protection and sealing of low voltage power cable joints and terminations.
Operating temperature: -55°C to +110°C
Min. full shrink temperature: +125°C
Shrinkage ratio: 3 : 1, 4 : 1
Standard color: Black. Other colors on request.
Datasheet
FITCOTUBE® FT-SNHE
FITCOTUBE® FT-SNHE is a thick-walled, halogen-free tubing with adhesive liner, made from cross-linked polyolefin. It is resistant to chemical influences, non-corrosive, infusible and offers very good electrical properties and high tensile strength.
FITCOTUBE® FT-SNHE is particularly suitable for applications that require good insulation and protection against moisture and pressure, e.g. for heat-shrinkable connections and terminations.
Operating temperature: -40°C to +120°C
Shrink temperature: +125°C
Shrinkage ratio: 3 : 1
Standard colour: Black
Datasheet
FITCOTUBE® FT-SNHE-U
Heavy wall, cross-linked polyolefin tube with thermal melt adhesive liner. Ideal for insulation, sealing and protection of cable joints and wire harnesses (according to UL 486D). Halogen free with high resistance to abrasion and impact.
Operating temperature: -55°C to +105°C
Min. shrink temperature: +125°C
Shrinkage ratio: 3 : 1
Standard color: Black. Other colors on request.
Datasheet
FITCOTUBE® FT-SNHE(6)-U
FITCOTUBE® FT-SNHE is a thick-walled, halogen-free tubing with adhesive liner, made from cross-linked polyolefin. It is resistant to chemical influences, non-corrosive, infusible and offers very good electrical properties and high tensile strength.
FITCOTUBE® FT-SNHE is particularly suitable for applications that require good insulation and protection against moisture and pressure, e.g. for heat-shrinkable connections and terminations.
Operating temperature: -40°C to +120°C
Shrink temperature: +125°C
Shrinkage ratio: 3 : 1
Standard colour: Black
Datasheet
FITCOTUBE® FT-SNM
Medium wall, halogen-free and flexible tube with high shrink ratio. Excellent electrical insulation, e.g. in heavy-current engineering.
Operating temperature: -40°C to +120°C
Shrink temperature: +125°C
Shrinkage ratio: Up to 4 : 1
Standard color: Black. Other colors on request.
Datasheet
FITCOTUBE® FT-SNM-U
FITCOTUBE®FT-SNM-U is a medium wall, flexible tube made of radiation cross-linked polyolefin (semi-rigid). It is halogen-free and offers excellent electrical insulation, mechanical protection and sealing of low voltage power cable joints and terminations.
Operating temperature: -55°C to +110°C
Min. full shrink temperature: +125°C
Shrinkage ratio: 3 : 1, 4 : 1
Standard colour: Black, other colors on request
Datasheet
FITCOTUBE® FT-SNME
Medium wall, halogen-free, flexible tube with high shrink ratio and hot melt adhesive coating. Electrical insulation, pressure-proof sheating, anti-corrosion and moisture protection in all areas of energy supply, telecommunication technology as well as
piping construction.
Operating temperature: -40°C to +120°C
Shrink temperature: +125°C
Shrinkage ratio: 4 : 1
Standard color: Black. Other colors on request.
Datasheet
FITCOTUBE® FT-SNME-U
Medium wall, flexible and halogen free tube with thermal melt adhesive coating. Electrical insulation, pressure-proof sheating, anti-corrosion and moisture protection in all areas of energy supply, telecommunication technology as well as piping construction.
Operating temperature: -55°C to +105°C
Shrink temperature: +125°C
Shrinkage ratio: 3 : 1
Standard colour: Black, other colors on request
Datasheet
FITCOTUBE® FT-SNV
Medium wall, flame retardant, highflexible tube for insulation of round and rectangular busbars up to 1 kV. This highly flexible tubing can be used for a variety of curved and bent busbars (with round or rectangular cross-sections).
The UV-resistant material is therefore suitable for both indoor and outdoor applications.
Operating temperature: up to +105°C
Shrink temperature: +120°C, ideally: shrinkage with open flame
Shrinkage ratio: 2,5 : 1 or 3 : 1
Standard color: Black. Other colors on request.
Datasheet
FITCOTUBE® FT-SNV-U(1)
Polyolefin heat shrinkable tube for high-voltage copper busbars of electric vehicles, with a rated voltage of DC60V-1000V or AC25V-660V. Excellent high temperature resistance, elastic recovery, anti-cracking and no visible air bubble trapped after shrinkage.
Operating temperature: -55°C to +125°C
Shrink temperature: +125°C
Shrinkage ratio: 2 : 1, 2.5 : 1 and 3 : 1
Standard colour: Black, orange, red
Datasheet
FITCOTUBE® FT-SNV-U(1)-1
Thin wall, flame retardant, flexible tube for insulation of round and rectangular busbars up to 1 kV.
Operating temperature: -40°C to +105°C
Shrink temperature: +125°C
Shrinkage ratio: 2 : 1
Standard color: Black, orange. Other colors on request.
Datasheet
FITCOTUBE® FT-SNV-U(10)
Thin wall, flame retardant, flexible tube for insulation of round and rectangular busbars from 6 up to 24 kV.
Operating temperature: -40°C to +105°C
Shrink temperature: +125°C
Shrinkage ratio: 2.5 : 1
Standard colour: Red
Datasheet
FITCOTUBE® FT-WB-U-HT
Temperature resistant polyolefin heat shrink tubing coated inside with hot melt adhesive
Designed for insulation and sealing of connectors and components in the vehicle environment under the hood.
Thanks to a special formulation for use in extended temperature requirements.
Operating temperature: -40°C to +150°C
Shrink temperature: +135°C
Shrinkage ratio: 4 : 1 & 3 : 1
Standard color: Black
Datasheet
FITCOTUBE® FT-WB-U-NH
FITCOTUBE® FT-WB-U-NH is a dual wall heat-shrink tubing which is free of halogen. It offers a high shrinkage rate and is particularly suitable for waterproof sealing and insulation protection in the automotive industry (wiring harness wire connectors, terminals and components).
Operating temperature: -40°C to +125°C
Shrink temperature: +125°C
Shrinkage ratio: 4 : 1
Standard colour: Clear/Black (outer jecket/inner layer)
Datasheet
FITCOTUBE® FTV
High temperature resistant, highly resistant heat shrinkable tubing for cable sheathing in aircraft and vehicle construction for extreme mechanical, chemical and thermal loads as well as for the protection of measuring probes, they are exposed to temperature loads and aggressive media.
Temperature range: -40°C to +200°C, short time +300°C
Shrink temperature: +150°C
Shrinkage ratio: 2 : 1
Standard color: Black. Other colors on request.
Approvals/Specifications: Mil Spec. M23053/13
Datasheet
FITCOTUBE® FT-VD
Flexible, highly abrasion and high-temperature resistant VITON™+ heat shrink tubing. Chemical and mechanical protection of cables. Ideal for protecting electronic components in high temperature areas.
Temperature range: -55°C to +220°C
Shrink temperature: . from +175°C
Shrinkage ratio: 2 : 1
Standard colour: Black. Other colors on request.
Datasheet
FITCOTUBE® FT-VD-TW
High temperature resistant, very tough, thin-walled fluoroelastomer heat shrink tubing for cable sheathing in aircraft and vehicle construction under extreme mechanical, chemical and thermal exposure. Protection of measuring probes, which are exposed to high temperature loads and aggressive media.
Temperature range: -55°C to +220°C, short time +300°C
Shrink temperature: . +160°C
Shrinkage ratio: 2 : 1
Standard colour: Black. Other colors on request.
Datasheet
FITCOTUBE® TF/FP-B
Dual Wall, high temperature resistant heat shrinkable tubing made of PTFE with melting FEP core for sealing and encapsulation of components with highest demands on temperature resistance and/or chemical resistance.
Temperature range: -190°C to +205°C
Shrink temperature: min. +330°C
Shrinkage ratio: 1.5 : 1
Standard color: Nature/transparent (milky)
Datasheet
FITCOTUBE® TF-TFR
High-temperature, chemically resistant heat-shrink tubing made of PTFE. Electrical insulation of components at very high ambient temperatures and protection of wires and cables against aggressive chemical substances. Available in both thickwalled and thin-walled versions and made from raw-material tested in accordance with ASTM D 4895 (F201, F205, F208).
Temperature range: -200°C to +260°C
Shrink temperature: . +330°C
Shrinkage ratio: 2 : 1, 4 : 1
Standard colour: Clear
Datasheet
FITCO® Schrumpfende Reparaturmanschette
FITCO® Heat-Shrink Repair Sleeve is made from cross-linked polyolefin, with a hot melt-adhesive liner on the inner side of the sleeve. When heating, the sleeve shrinks and the adhesive melts create a water-thight bond between the sleeve and the cable. Sleeve material equals to the properties of the original cable jacket, it closes easily with a flexible stainless steel channel.
Applications:
For insulation on low voltage cable up to 1000 V. Protection against mechanical stress.
Standard color: Black
Datasheet
FITCOFLEX®-B-HP/HPT
FITCOFLEX®-B-HP and even more HPT is made of PET (polyethylene terephtalate) multifilaments braided in a tight construction and extremely tough and resistant to abraison and cut through, thus extending considerably the lifetime of the protected tube or pipe. It offers additional protection versus the standard FITCOFLEX®-B types.
The sleeve is manufactured in a way that through the hot cut no issues are risen for the installation.
Temperature range: -70°C to +150°C
Standard colour: black, other colors on request.
Datasheet
FITCOFLEX®-B-HS
FITCOFLEX®-B-HS is a shrinkable woven textile made of a combination of PET and polyolefin yarns. The tightly woven construction makes it extremely flexible and resistant to trapping water, heat, and humidity. Due to its 2:1 shrink ratio, it provides a snug fit around the underlaying substrate, thus protecting components such as rubber hoses, pipes, and wire harness from mechanical abrasion. It resists to harsh environments such as engine compartments
Temperature range: -40°C to +125°C (3000h), peak temperature +150°C
Shrinking Temp.: +80°C (min. Shrinking Temp.)
. 115°C (full Shrinking Temp.)
Shrink ratio: 2:1
Standard colour: black
Datasheet
FITCOFLEX®-B-PA25
FITCOFLEX®-B-PA25 is ROHS and REACH compliant and halogen free. Manufactured using 0.25mm PA6.6 monofilaments, FITCOFLEX®-B-PA25 offers very good abrasion resistance and is particularly suited to the protection of pipes, hoses and cable harnesses. It offers outstanding protection against oil, fuel and other chemical agents. FITCOFLEX®-B-PA25 has a tough, lightweight and flexible construction.
Temperature range: -40°C to +125°C
Standard colour: black, other colours on request
Datasheet
FITCOFLEX®-B-PA/2PET
FITCOFLEX®-B-PA/2PET has a open weave structure which permits drainage and prevents condensation. This sleeve is ROHS and REACH compliant and halogen free.
Manufactured using 0.25mm PET and PA66 monofilaments, FITCOFLEX®-B-PA/2PET offers very good abrasion resistance and is particularly suited to the protection of pipes, hoses and cable harnesses. It offers outstanding protection against oil, fuel and other chemical agents. FITCOFLEX®-B-PA/2PET has a expandable and flexible construction.
Operating temperature: – 40°C to + 150°C
Standard color: black, other colors on request
Datasheet
FITCOFLEX®-B-2PA/PET
FITCOFLEX®-B-2PA/PET has a open weave structure which permits drainage and prevents condensation. This sleeve is ROHS and REACH compliant and halogen free.
Manufactured using 0.25mm PET and PA66 monofilaments, FITCOFLEX®-B-2PA/PET offers very good abrasion resistance and is particularly suited to the protection of pipes, hoses and cable harnesses. It offers outstanding protection against oil, fuel and other chemical agents. FITCOFLEX®-B-2PA/PET has a expandable and flexible construction.
Temperature range: -40°C to +150°C
Standard colour: black, other colours on request
Datasheet
FITCOFLEX®-B-PET22
FITCOFLEX®-B-PET22 is a high quality abrasion sleeve, suitable for a wide range of applications particularly within the industrial sector. Also, suitable for some automotive applications. This sleeve is ROHS and REACH compliant, halogen free
and self-extinguishing. Manufactured using 0.22mm PET monofilaments, FITCOFLEX®-B-PET22 offers very good abrasion resistance and is particularly suited to the protection of pipes, hoses and cable harnesses. It offers outstanding protection against oil, fuel and other chemical agents. FITCOFLEX®-B-PET22 has a tough, lightweight and flexible construction.
Operating temperature: – 70°C to + 150°C
Standard color: black, other colors on request
Datasheet
FITCOFLEX®-B-PET25
FITCOFLEX®-B-PET25 is a superior quality abrasion sleeve, suitable for a wide range of applications particularly within the automotive industry. This sleeve is ROHS and REACH compliant, halogen free and self-extinguishing.
Manufactured using 0.25mm PET monofilaments, FITCOFLEX®-B-PET25 offers excellent abrasion resistance and is particularly suited to the protection of pipes, hoses and cable harnesses. It offers outstanding protection against oil, fuel and other chemical agents. FITCOFLEX®-B-PET25 has a tough, lightweight and flexible construction.
Temperature range: -70°C to +150°C
Standard colour: black
Datasheet
FITCOFLEX®-B-PET25FR
FITCOFLEX®-B-PET25FR is specifically designed for high-tech applications where flame retardant and durability are the main selection criteria. Recommended applications are protection for wire bundling, harnessing, pneumatic hoses and hydraulic lines in the aerospace and defense, automotive, commercial, industrial, marine and rail industry. It is a flame proof product, which means it won’t ignite, even when exposed on a burning source.
FITCOFLEX®-B-PET25FR is halogen-free and RoHS and REACH compliant.
Temperature range: -70°C to +125°C
Standard colour: black, other colors on request
Datasheet
FITCOFLEX®-B-PETKNIT
FITCOFLEX®-B-PETKNIT is a expandable protective sleeve manufactured using PET (Polyester) monofilaments and multifilaments. It is a lightweight and tought knitted sleeve designed for the protection of pipes and wire harnesses against unexpected mechanical damages. The sleeve has a high abrasion resistance suitable for a snug fit on the pipes.
FITCOFLEX®-B-PETKNIT offers a grade of superior abrasion protection and an outstanding resistance against oils, liquids, fuel, and various chemical agents. It is RoHS and REACH compliant, halogen free and self-extinguishing.
Temperature range: -70°C to +150°C
Standard colour: black, grey
Datasheet
FITCOFLEX®-B-PETNVH
FITCOFLEX®-B-PETNVH is a flexible and lightweight high quality NVH (Noise/Vibration/Harshness) protective sleeve made of polyethylene terephtalate monofilament and multifilament. The sleeve offers outstanding abrasion protection for hoses / pipes and wire harnesses against mechanical damage. The special construction provides excellent noise reduction / acoustic dampening properties and is particularly suited to automotive applications.
FITCOFLEX®-B-PETNVH also offers outstanding resistance against oils, liquids, fuel, and various chemical agents and thus can extend the life time of the protected components. It is RoHS and REACH compliant and halogen free.
Temperature range: -70°C to +150°C
Standard colour: black, other colors on request
Datasheet
FITCOFLEX®-B-WRAP
FITCOFLEX-B-WRAP is a self closing protective sleeve made with a combination of polyethylene terephthalate (PET) monofilaments and multifilaments. The self-closing concept allows the sleeve to be installed easily onto pre-terminated wires or tubes, thus allowing installation at the end of the whole assembly process.
FITCOFLEX-B-WRAP is a tough sleeve resistant to cut, designed to protect wire bundles and harnesses, hoses, tubing, and cable assemblies from mechanical damage and enviromental hazards. It slips quickly and self-fits on irregular shapes and contours.
Temperature range: -70°C to +150°C
Standard colour: black
Datasheet
FITCOFLEX®-H-B PA
FITCOFLEX®-H-B PA is a colored, self-extinguishing, halogen-free polyamide braided hose with 75% surface coverage. It is especially suitable for applications such as automotive engineering, robots, mechanical and thermal protection, medical technology, aircraft construction, rail vehicle construction.
Temperature range: -60°C to +160°C, short time +180°C
Melting point: Approx. +245°C
Standard colour: black / grey, other colors on request
Datasheet
FITCOFLEX®-H-B PP
FITCOFLEX®-H-B PP is a colored, self-extinguishing, halogen-free polypropylene braided hose with 75% surface coverage.
Its main applications are bundling and protection of industrial cabling and test wiring harnesses, switch panels, control cabinets, railroads, and shipbuilding.
FITCOFLEX®-H-B PP is non-toxic in case of fire.
Temperature range: -30°C to +105°C
Melting point: Approx. +160°C
Standard colour: black / gray, other colors on request
Datasheet
FITCOFLEX®-HS
FITCOFLEX® -HS is a braided heat-shrink tubing with high shrink ratio.
It offers abrasion protection for pipes, tubes and cable bundles and is universal applicable for wide variety of different diameters, due to its high shrink ratio. Thus it helps reducing storage!
Operating temperature: -40°C up to +125°C (3.000h) / -40°C up to 150°C (1.000h)
Standard colour: black
Datasheet
FITCOFLEX®-I-ARA (B)
FITCOFLEX-I-ARA-(B) is a non-flammable braided sleeving made of para-aramid (1100dtex AR multifilament) with high cut and tensile strength.
High temperature and liquid resistance allow use in almost all areas of vehicles, e.g. engine compartment, vehicle interior, chassis, moisture area or vehicle underbody area. For a higher protective effect, the sleeve could be double-braided.
Operating temperature: -55°C to +280°C
Standard colour: yellow
Datasheet
FITCOFLEX®-I-PA15
FITCOFLEX®-I-PA15 is a mechanical, self-extinguishing braided hose made of Polyamide 6.6 with high expansion rate.
Its main applications are bundling and mechanical, thermal and chemical protection of cable harnesses, sleeves and pipes.
Operating temperature: -55°C to +125°C
Standard colour: black
Datasheet
FITCOFLEX®-I-PA35
FITCOFLEX®-I-PA35 is a self-extinguishing braided hose made of Polyamide 6.6 with high expansion rate.
Its main applications are bundeling and mechanical, thermal and chemical protection of cable harnesses, sleeves and pipes.
Operating temperature: -55°C to +125°C
Standard colour: black
Datasheet
FITCOFLEX®-I-PA35H
FITCOFLEX®-I-PA35H is a self-extinguishing braided hose made of heat stabilized polyamide 6.6 HS with high surface coverage. It offers excellent protection against mechanical influences, resistance to the physical and chemical conditions prevailing in the automobile industry. Suitable for use at higher temperatures.
Operating temperature: -55°C to +180°C, short time +205°C
Standard colour: black
Datasheet
FITCOFLEX®-B-PET12
FITCOFLEX®-I-PET12 is a halogen free and self-extinguishing braided hose made of 0,22mm polyester monofilament. It provides an extraordinary high expansion rate as well as a high temperature resistance and excellent mechanical protection.
FITCOFLEX®-I-PET12 is especially suitable for cable and pipe bundling for applications in the automotive industry.
Operating temperature: -55°C to +150°C
Standard colour: black
Datasheet
FITCOFLEX®-B-PET15
FITCOFLEX®-I-PET15 is a halogen-free braided hose made of ?0.25mm PET monofilament and is characterized by excellent protection against mechanical impacts, as they occur primarily in the automotive industry.
FITCOFLEX®-I-PET15 offers high expansion rates and high long-term temperature resistance as well as low weight, high flexibility and very good media resistance. It is particularly suitable for use in the engine compartment, in underbody and wet areas and in vehicle interiors.
Temperature range: -55° C to +150° C
Standard colour: black
Datasheet
FITCOFLEX®-B-PET35
FITCOFLEX®-I-PET35 is a flexible and halogen-free braided hose with high surface coverage. It is made of ?25mm PET monofilaments and especially suitable for bundling and protection of industrial cabling and test harnesses requiring high temperature resistance.
FITCOFLEX®-I-PET35 allows universal application for a large number of different diameter ranges thanks to high expansion rate. It is resistant to the physical and chemical conditions prevailing in the automotive sector.
Operating temperature: -55°C to +150°C
Standard colour: black
Datasheet
FITCOFLEX®-J-NO
FITCOFLEX®-J-NO is a braided sleeve made of Nomex® fiber, self-extinguishing, non-melting, especially designed and suitable for protection of wire and cable bundles against flame, high temperatures and mechanical abrasion. It is preferably used in high-tech fields such as racing, military industry, aerospace, and fire protection.
Temperature range: -196°C to +350°C, carbonized at 370°C
Standard colour: ivory, olive green
Datasheet
FITCOFLEX®-SGS95
FITCOFLEX®-SGS95 is a round braided shield for the electromagnetic shielding of cable bundles, especially in aerospace and military technology. This molded and removable PVC hose offers increased stability and simplified assembly. It also has a optical coverage of ? 95%. FITCOFLEX®-SGS95 is made of copper-tinned material (other on request).
Datasheet
FITCOFLEX®-Crash-Wrap
FITCO® Crash-Wrap is a self-wrapping sleeve designed to provide superior cut through protection for electrical cables. The tough construction enables the product to absorb and disperse energy, thus preventing damage to the electrical cable inside.
It also has a light, flexible structure that does not impede cable routing.
The self wrapping feature of FITCO® Crash-Wrap allows for quick and easy installation and removal of the product for assembly or maintenance.
Temperature range: -70°C to +150°C
Standard colour: orange, black
Datasheet
FITCO®-Crash
FITCO® Crash is a sleeve designed to provide superior cut through protection for electrical cables. The tough construction enables the product to absorb and disperse energy, thus preventing damage to the electrical cable inside. It also has a light, flexible structure that does not impede cable routing.
Temperature range: -70°C to +150°C
Standard color: orange, black
Datasheet
FITCO®-Guard
Lightweight and flexible for easy installation, can accommodate multiple shapes and maximize the life span of any component upon application. The sleeve’s braided composition resists end fray and makes it compatible with extreme environments.
Protective sleeve designed to provide maximum abrasion protection for cables, hoses, wires and other elements. Its durability offers excellent burst prevention and effectively protects against impact damage for: Automotive industry, aviation industry, medical equipment, industrial and environmental technology.
Temperature range: -70°C to +150°C
Standard color: black
Datasheet
FITCO®ISO PVC
Multipurpose protection and insulation hose made of polyvinyl chloride featuring very good UV resistance.
Operating temperature: -20°C to +60°C
Colors: Black
Datasheet
FITCO®ISO PUR
Multipurpose protective and insulating hose made of polyurethane with very good UV resistance.
Operating temperature: -40°C to +125°C
Colors: Black
Datasheet
FITCO®ISO FEP
Transparent and flexible insulating hose made of FEP.
Operating temperature: up to +204°C
Colors: Transparent
Datasheet
FITCO®ISO PTFE
Semi-rigid, abrasion-resistant, flame-retardant hose for reliable insulation and mechanical protection.
Operating temperature: -270°C to +260°C
Colors: Transparent, colors on request
Datasheet
FITCO®ISO SIL
Fabricless insulating hose made of silicone rubber, talcum coated on the outside. Excellent thermal and dielectric properties.
Operating temperature: -60°C to +200°C
Colors: Transparent, colors on request
Datasheet
FITCOFLEX® GLS ROH
Glass silk tubing made of E-Yarn with excellent thermal properties and resistance to acids, bases, oils, esters, ketones, ozone and UV rays.
Operating temperature: min. +500°C
Colors: White
Datasheet
FITCOFLEX® GLS SIL
Fabric-containing glass silk hose coated with silicone elastomer varnish.
Operating temperature: -45°C to +230°C
Colors: Nature, colors on request
Datasheet
FITCO®SEAL FTS-0
Extremely resistant, halogen-free, absolutely waterproof universal crimp connector. With greater temperature range.
Temperature range: -55°C to +125°C
Shrink temperature: from 100°C
Datasheet
FITCO®SEAL FTS
Extremely resistant, halogen-free, absolutely waterproof universal crimp connector.
Temperature range: -40°C to +105°C
Shrink temperature: from 150° C
Datasheet
FITCO®SEAL FTS 1:3
Extremely resistant, halogen-free, absolutely waterproof universal crimp connector. With 1:3 shrink ratio.
Temperature range: -40°C to +105°C
Shrinking temperature: from 150°C
Datasheet
FTLV NT/HT
Shrinking solder joints with internal solder ring and thermoplastic sealing rings.
Operating temperature: FTLV NT: -55°C up to +105°C / FTLV HT: -55°C up to +150°C
Shrink temperature: min. +115°C

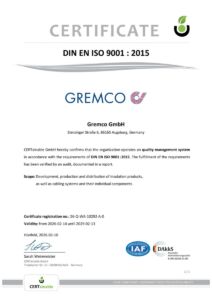

Certificate
ISO 9001:2015

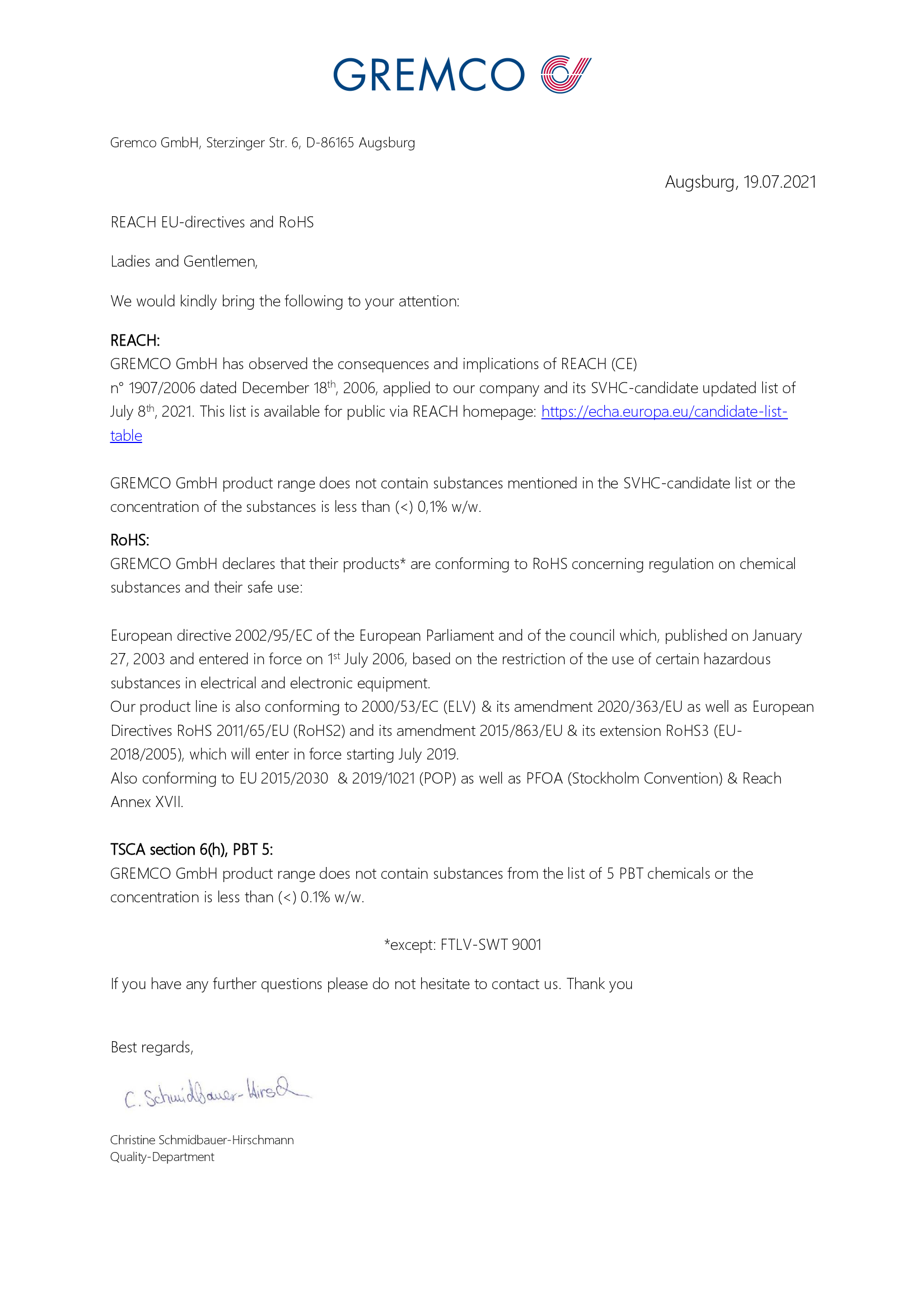

Certificate
Reach & RoHS EN
Certificate
MIL QPL / AS23053
